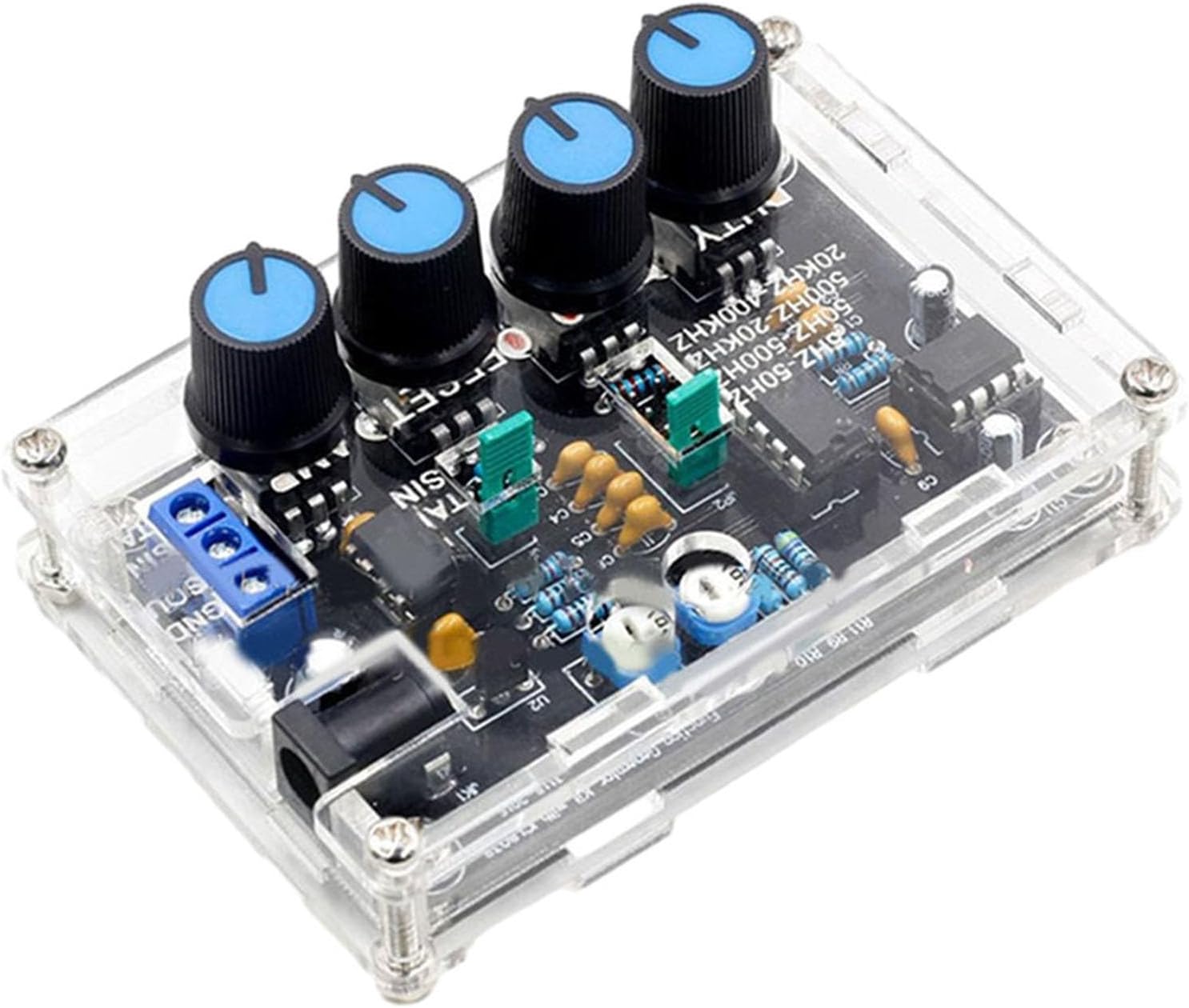

High Speed Op Amp for Higher Accuracy ICL8038 Multifunctional Low Frequency Signal Generator XR2206 Upgraded

Product description DescriptionThis signal generator DIY kit is professional product to generate sine/triangle/square/forward and reverse sawtooth wave. It's a DIY kit for you to weld and install.Features:*Uses ICL8038 and high-speed op amp, higher accuracy.*Can output sine/triangle/square/forward and reverse sawtooth waveforms.*Frequency Range: 5Hz~400kHz; Duty Cycle Range: 2~95%(Adjustable)*Supports dual power amplifiers without blocking the capacitor to for ensure high and low frequency signal distortion.*Adjustable frequency and amplitude.*Frequency adjustment features coarse tuning and fine tuning.*All are through hole components, easy to install.Specifications:Material: FR4 + AcrylicSupply Voltage: 12V~15VFrequency Range: 5Hz~400KHz(Adjustable)Duty Cycle Range: 2~95%(Adjustable)Low Distortion Sine Wave: %Low Temperature Drift: 50ppm / °COutput Triangular Wave Linearity: 0.%DC Bias Range: -7.5V~7.5VOutput Amplitude Range: 0.1V~11VPP(operating voltage 12V)Board Size: Approx. 7.8 * 5cm / 3.07 * .97inFinished Product Size: Approx. 8.7 * 6 * .7cm / 3.43 * 2.36 * 0.67inProduct Weight: 81g / 2.86ozPackage Size: Approx. 11 * 7 * 3cm / 4.33 * 2.76 * .18inPackage Weight: 95g / 3.35oz Manufacturer Contact Information no

• 【Multifunctional Signal Generator】This DIY kit is specially designed to generate sine/triangle/square/forward and reverse sawtooth waveforms.
• 【High Accuracy】Utilizes ICL8038 and high-speed op amp for higher accuracy in waveform generation.
• 【Wide Frequency Range】Frequency range adjustable from 5Hz to 400kHz, suitable for various applications.
• 【Easy Installation】All components are through-hole, making it and assemble.
• 【Adjustable Frequency and Amplitude】Allows for precise frequency and amplitude adjustments with coarse tuning and fine tuning features.
